Automatic Vertical Insulating Glass Sealing Robot Glass Curtain Wall Gluing Machine

Name: Automatic Vertical Insulating Glass Sealing Robot Glass Curtain Wall Gluing Machine
Brand: LIJIANG GLASS
Price: 50 USD

Quality Automatic Vertical Insulating Glass Sealing Robot Glass Curtain Wall Gluing Machine wholesale

Brand Name : LIJIANG GLASS

Model Number : LJTJ2025

Certification : CE

Place of Origin : CHINA

MOQ : ONE SET

Price : US$50,000 to US$47,000

Payment Terms : L/C, T/T

Supply Ability : 5 units per month

Delivery Time : 10 working days

Packaging Details : Containers and wooden boxes

Voltage : Can be request

Power : 12KW

Dimension(L*W*H) : 8000mm*1500mm*2700mm

Weight : 3700 kg

Key Selling Points : Automatic

Contact Now

High Efficiency Automatic Vertical Insulating Glass Sealing Robot Glass Curtain Wall Gluing Machine

Product Description

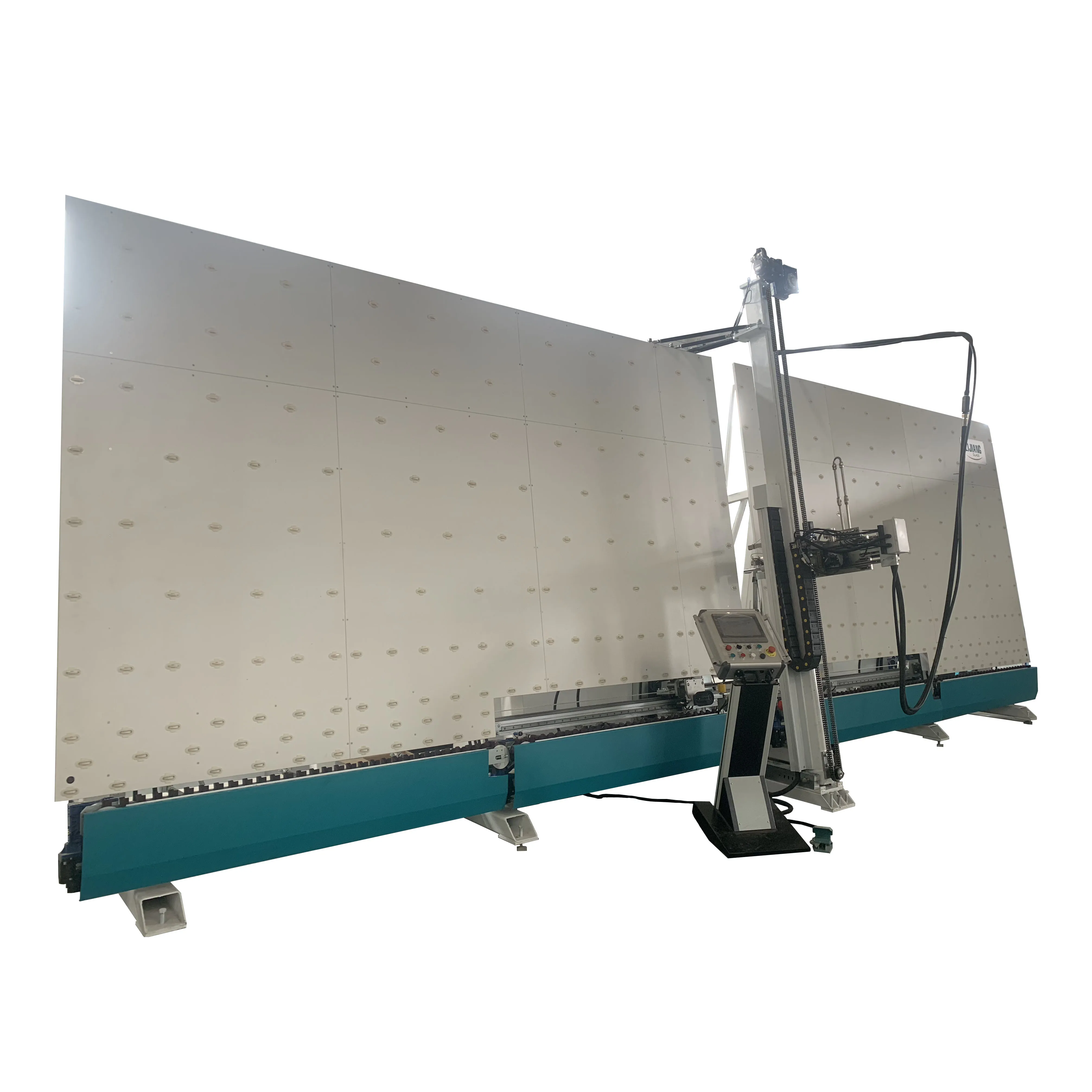

Automatic Vertical Insulating Glass Sealing Robot

Automatic Insulating Glass Sealant Sealing Machine can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass. Automatic Vertical Insulating Glass Sealing Robot can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.

Advantages & Features

Benefits & Advantages

* Min & Max glass sizes can be optional * Adopt 8 servo motors * Adopt Japan ANCHUAN servo control systemwith stable performance * Automaticallymeasure glass size, glue depth and glue speed with linear adjustment * Adopt timingbelt to keep smooth convey with accurate position * Sparesare produced with high standardization and high precision, ensure the machine can be used with long-term working * The glass cornersare full without air bubbles, smooth surface. * Full automatic and high-efficiencymachine * New scraper design, especially for making train IG with very even sides and corners, without any bubbles. * Automatically repair glass corners with beautiful surface * Smooth convey without scratchand pollution * Single-function partsare equipped with manual functions, easy adjustment * Shaped IG units (Optional) * Stepped IG units with four sides (Optional) * Double and Triple IG units

The Smooth Glue Surface

After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.

The High-precision Servo Control System

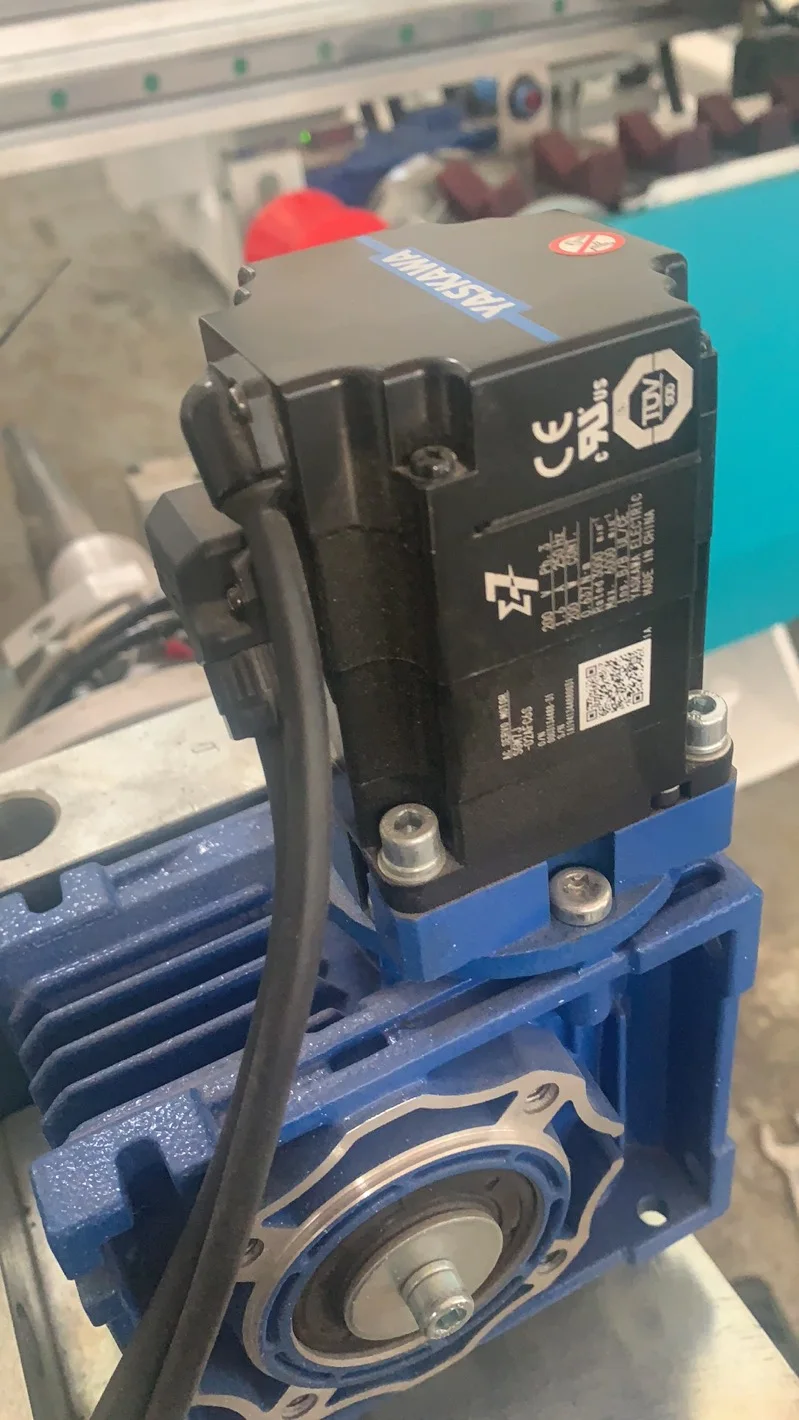

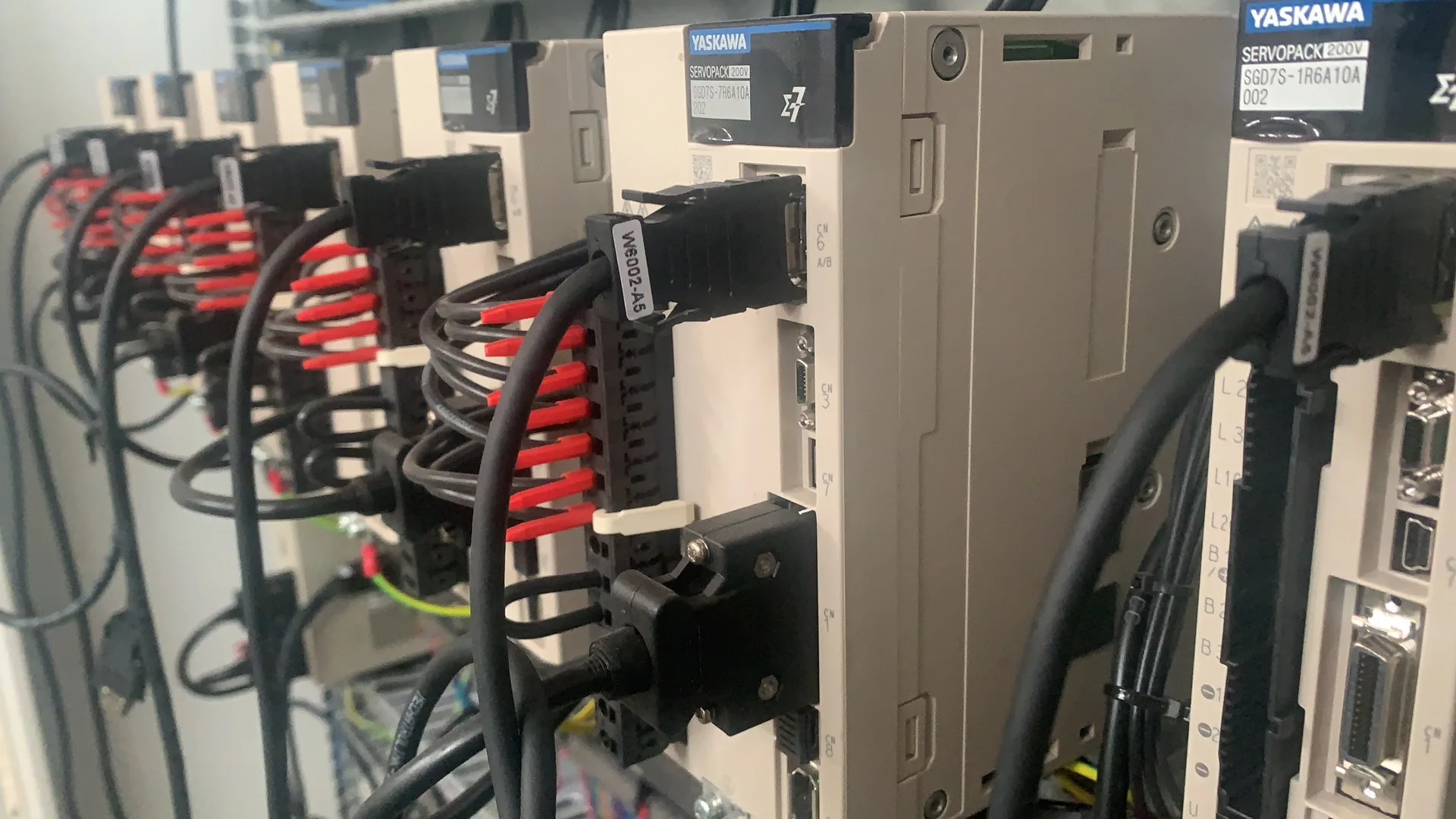

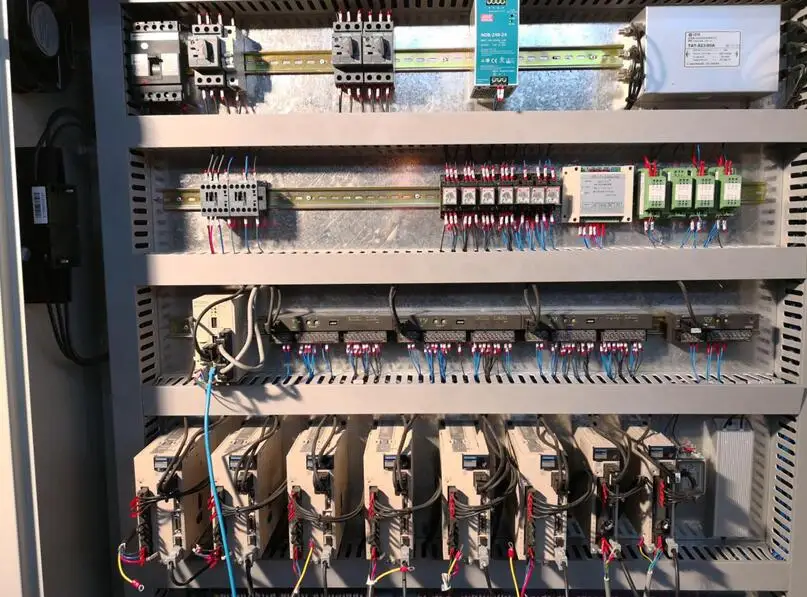

It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.

The Glass Coating

Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.

Glue Pump A and Glue Pump B

Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.

Main Technical Parameter

Item.	Spec.
Max glass size	2500*4000mm
Min glass size	280*400mm
Glass thickness	12 - 50mm
Glue depth	≤22mm
Glue width	26.5mm
Working speed	5 - 40m/min
Air pressure	0.6MPa
Squeeze pressure	32MPa
Voltage Power	380V 50Hz 12KW

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON

Company Introduction

The Brief Information

Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Group Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
